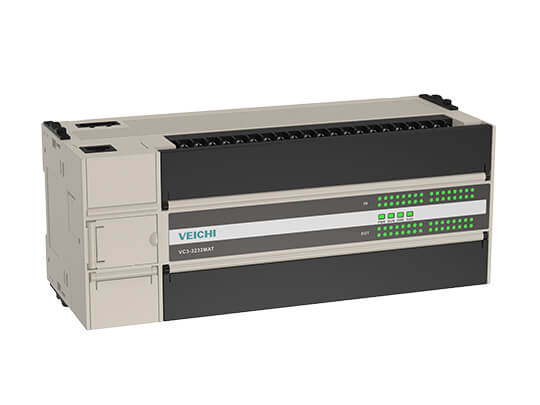

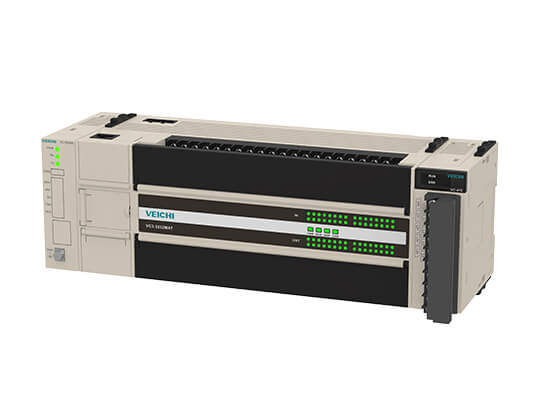

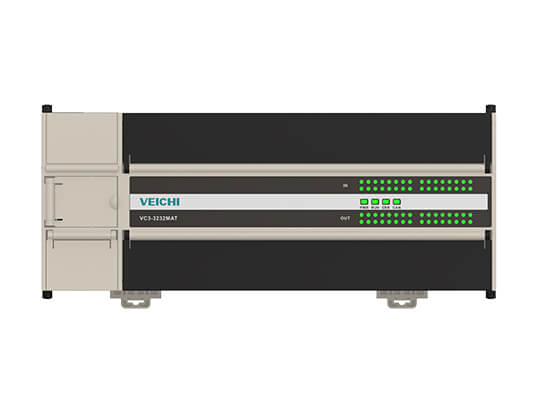

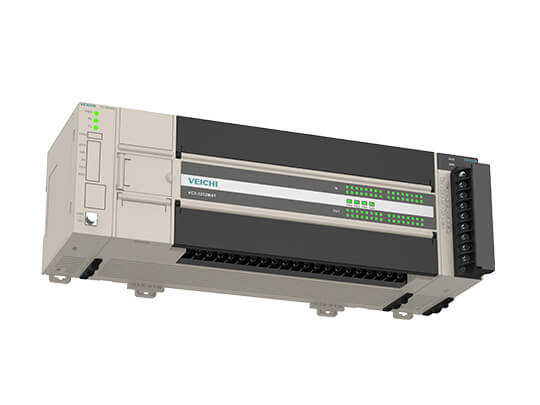

VC3M series motion control type high performance PLC
- VC3 series PLC has the characteristics of high performance and large capacity, which can meet various increasingly complex process requirements.
- Integrate rich motion control functions, dual-core architecture. Make your device move with precision.
- Support 4-axis general electronic gear or 4-axis free track electronic cam function. It can meet various synchronous following movements.
- Supports 2-axis linear and 2-axis circular interpolation functions.
- Related Products
- Additional Information
VC3M series motion control type high performance PLC Overview
VC3M series PLC is the third generation of high-performance PLC developed by VEICHI. Adopt dual-core architecture technology. With the addition of rich control functions, the PLC performance is continuously improved to meet various increasingly complex control requirements. Suitable for small automation equipment industry. Mainly used in production line automation, woodworking machinery glass machinery, handling, loading and unloading, electronic non-standard and other advanced manufacturing industries.
1. VC3 series PLC has the characteristics of high performance and large capacity, which can meet various increasingly complex process requirements.
2. Integrate rich motion control functions, dual-core architecture. Make your device move with precision.
3. Support 4-axis general electronic gear or 4-axis free track electronic cam function. It can meet various synchronous following movements.

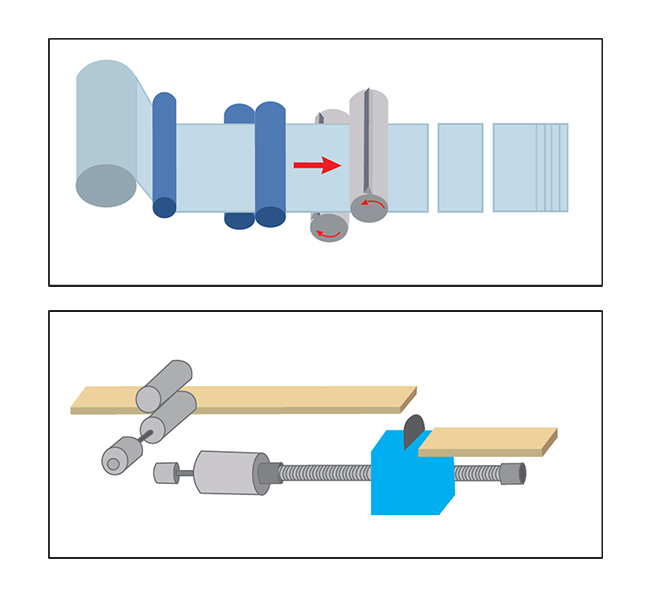

4. Integrated 4-axis flying shear or flying shear function. Automatically plan cam curves without complex programming.

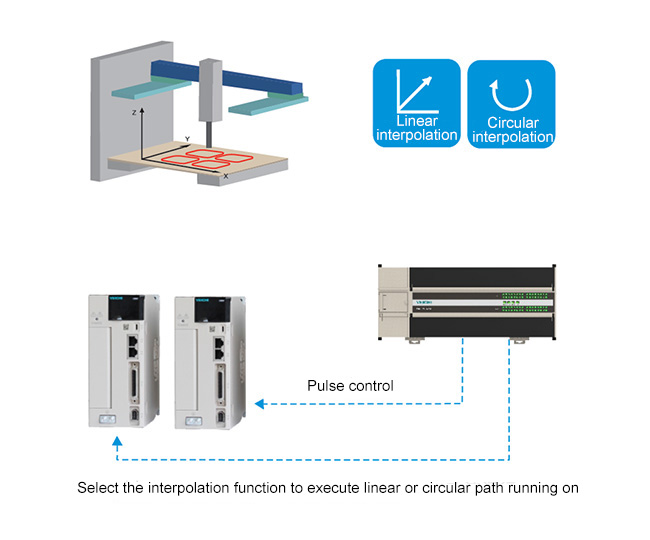

5. Supports 2-axis linear and 2-axis circular interpolation functions.
6. Powerful communication function. Integrated Ethernet, CANopen, RS-485, RS-232, and Type-C interfaces. Let automation equipment communicate seamlessly.
7. Convenient, efficient and friendly graphical interface. Greatly improve the efficiency of developing applications.
8. Suitable for small automation equipment industry. Mainly used in production line automation, woodworking machinery, glass machinery, handling, loading and unloading, electronic non-standard and other advanced manufacturing industries.
1. Support independent serial communication COMO, COM1, and support USB monitoring download.
2. Support left expansion 1 serial communication port COM2.
3. The main module has its own Ethernet interface. Support Modbus-TCP protocol.
4. The main module has its own CAN communication interface. Support CANopen (301/402) protocol.
High speed pulse
1. Support 8-channel 200k high-speed pulse input.
2. Support 8-channel 200k high-speed pulse output. More abundant positioning commands, support S-curve acceleration and deceleration.
Flying shear or flying shear function
Support 4-axis flying shear or flying shear function. Automatically plan cam curves without complex programming.
Linear interpolation, circular interpolation
Supports 2-axis linear and 2-axis circular interpolation functions.
1. The program space is increased to 64k steps, and the data storage capacity is 48K words.
2. Support firmware online update function. Meet the differentiated needs of customers.
3. Support 8 external interrupt inputs.
4. Newly added R-ary register 32K.
5. Supports the development of subprograms with parameters.
1. Up to 8 special expansion modules are supported.
2. A maximum of 15 I/O modules can be extended (the power supply capacity needs to be considered).
3. Added more than 120 instructions. Including data block processing, absolute value instructions, character string processing, positioning instructions, etc.
Industrial Applications for VC3M Series PLC
Applications：Machine tool, packaging, printing, textile and other industries.
|Basic command speed||0.065μs|
|High speed input||8 chanels*200kHz|
|High speed output||8 chanels*200kHz|
|Digital filtering||X0～X7 adopt settable digital filter|
|Power-down storage||48K words|
|COM serial communication||Two-way communication port
|USB||Support USB-Type-C interface|
|CANopen||Built-in CAN communication port
Axis position setting:Through parameter setting
|Ethernet||Built-in Ethernet communication port
Program upload and download, Modbus-TCP
Supports up to 16 slave connections
|Left communication extension type||Support 1 channel RS-485 expansion|
|Right expansion module type||A maximum of 15 modules are supported, of which a maximum of 8 special modules are supported|
|Positioning command||Added multiple types of positioning functions|
|Real time clock||Support|
|S-curve acceleration and deceleration||Support|
|Interpolation command||Support two-axis linear and two-axis circular interpolation|
|Electronic cam||Support 4-axis electronic cam|
|Flying shear/flying shear non-standard||Support 4-axis flying shear/flying shear|
