VC3 series CAN bus high performance PLC
- VC3 series PLC has the characteristics of high performance and large capacity. It can meet a variety of increasingly complex process requirements.
- Integrate rich motion control functions and dual-core architecture. Make your device refinedexercise.
- Powerful communication function. Integrated Ethernet, CANopen, RS-485, RS-232, and Type-C interfaces allow seamless communication of automation equipment.
- The convenient, efficient and friendly graphical interface greatly improves the efficiency of developing applications.
- Related Products
- Additional Information
VC3 series CAN bus high performance PLC Overview
VC3 series PLC is the third generation of high-performance PLC developed by VEICHI. The dual-core architecture technology is adopted to continuously improve the PLC performance while adding rich control functions. Meet a variety of increasingly complex control needs. Suitable for small automation equipment industry.
1. VC3 series PLC has the characteristics of high performance and large capacity. It can meet a variety of increasingly complex process requirements.
2. Integrate rich motion control functions and dual-core architecture. Make your device refinedexercise.
3. Powerful communication function. Integrated Ethernet, CANopen, RS-485, RS-232, and Type-C interfaces allow seamless communication of automation equipment.
4.The convenient, efficient and friendly graphical interface greatly improves the efficiency of developing applications.

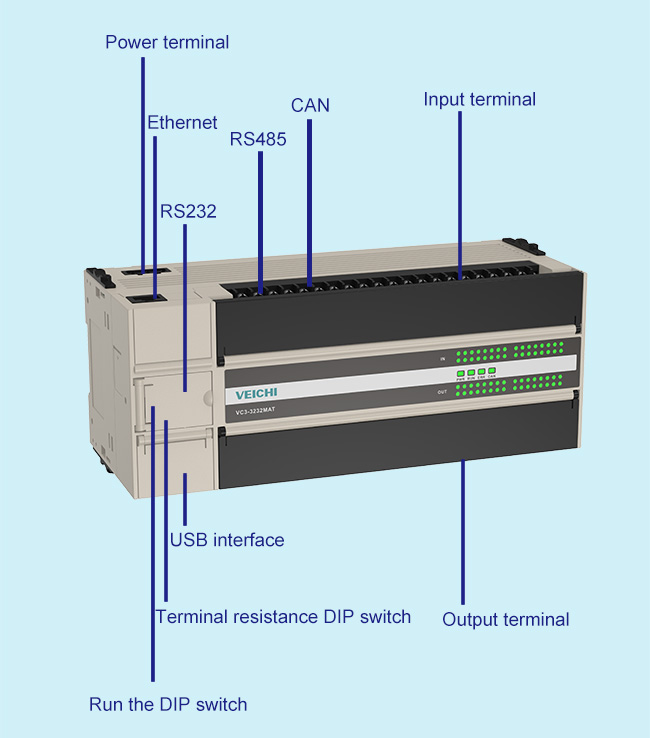

The port introduction of VC3 series PLC
1. Support 8-channel 200k high-speed pulse input.
2. Support 8-channel 200k high-speed pulse output. More abundant positioning instructions. Support S-curve acceleration and deceleration.
3. Support independent serial communication COMO, COM1, and support USB monitoring download. Support left expansion 1 serial communication port COM2.
4. The main module has its own Ethernet interface and supports Modbus-TCP protocol.
5. The main module has its own CAN communication interface and supports CANopen (301/402) protocol.
6. The program space is increased to 64k steps, and the data storage capacity is 48K words.
1. Support firmware online update function to meet the differentiated needs of customers.
2. The programming port protocol supports three communication interfaces: serial port, USB (Type-C) and Ethernet.
3. Support 8 external interrupt inputs.
4. Newly added R-ary register 32K.
5. Supports the development of subprograms with parameters.
6. Up to 8 special expansion modules are supported.
7. A maximum of 15 I/O modules can be extended (the power supply capacity needs to be considered).
8. Added more than 120 instructions. Including data block processing, absolute value instructions, character string processing, positioning instructions, etc.
Industrial Applications for VC3 Series PLC
Applications：Machine tool, packaging, printing, textile and other industries.
|Basic command speed||0.065μs|
|High speed input||8 chanels*200kHz|
|High speed output||8 chanels*200kHz|
|Digital filtering||X0～X7 adopt settable digital filter|
|Power-down storage||48K words|
|COM serial communication||Two-way communication port
|USB||Support USB-Type-C interface|
|CANopen||Built-in CAN communication port
(The master station supports a maximum of 64 configurations, and the slave station supports a maximum of 8 PDOs)
|Ethernet||Built-in Ethernet communication port
Program upload and download, Modbus-TCP
Supports up to 16 slave connections
|Left communication extension type||Support 1 channel RS-485 expansion|
|Right expansion module type||A maximum of 15 modules are supported, of which a maximum of 8 special modules are supported|
|Positioning command||Added multiple types of positioning functions|
|Real time clock||Support|
|S-curve acceleration and deceleration||Support|
