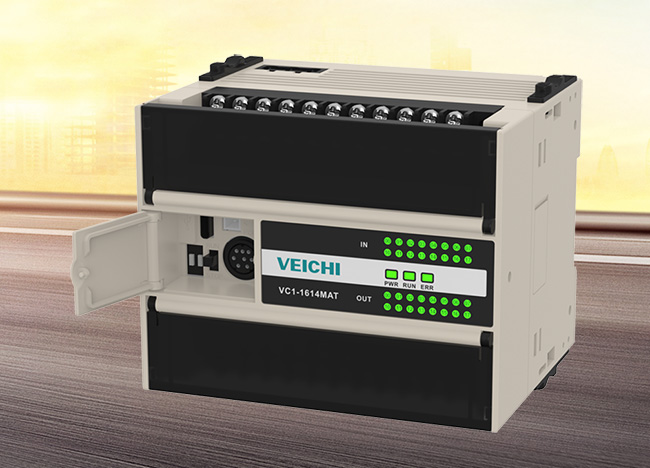

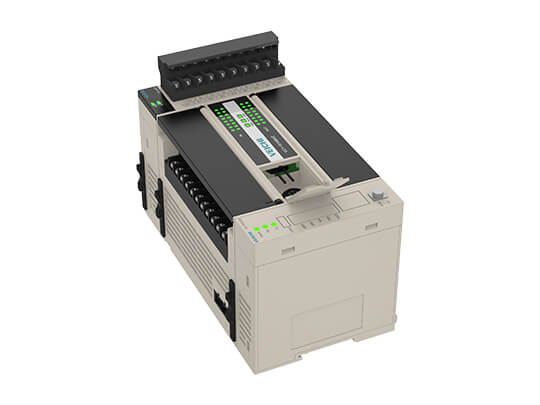

VC1 Series PLC
- User program supports up to 16k steps.
- Support USB communication，make debugging more convenient and quick.
- 2 channels of 50kHz high-speed counting, 6 channels of 10kHz high-speed counting.
- Can expand 1 way 485 through the left expansion module.
Catalogue
Contact support
EmailVC Series PLC Overview
PLC is divided into several series of ultra-small, general-purpose, bus type, high-performance type, operation control type and industrial Ethernet type.
1. The user program supports up to 16k steps.
2. 3 channels of 100Khz pulse output.
3. 2-channel 50Khz high-speed counting; 6-channel 10Khz high-speed counting.
4. 1 way 232, 1 way 485.

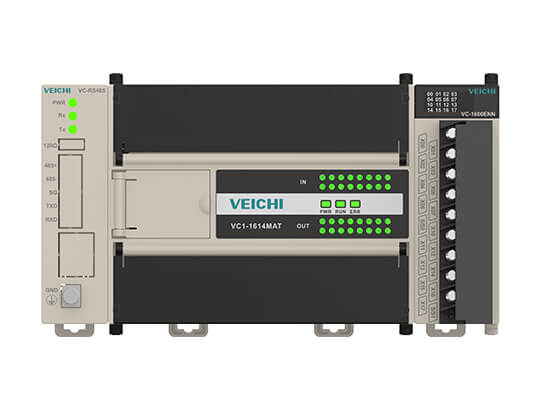

5. Can expand 1 way 485 through the left expansion module, support Ethernet.
6. Support USB communication, make debugging more convenient and quick.
7. Abundant expansion modules.
8. Convenient firmware upgrade.
Powerful and stable performance
VEICHI PLC has powerful functions, excellent performance, compact structure, stable and reliable, rich interfaces, and flexible combination.

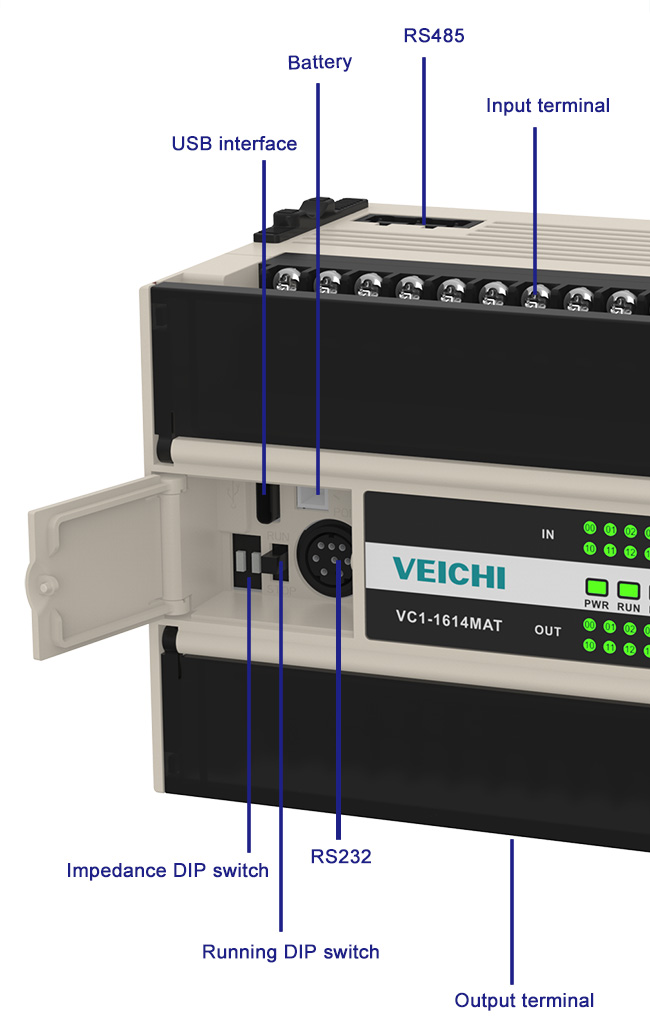

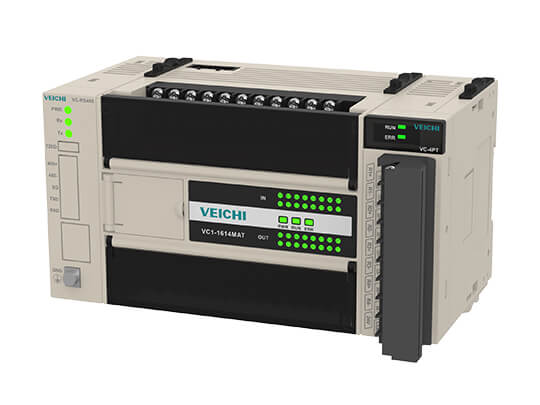

VC1 series PLC port introduction

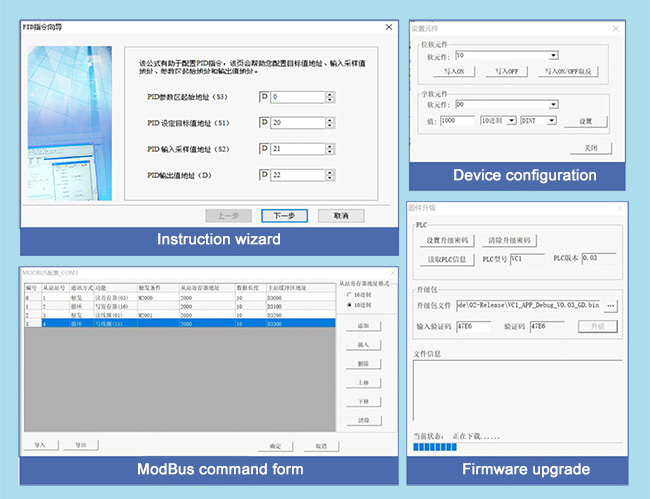

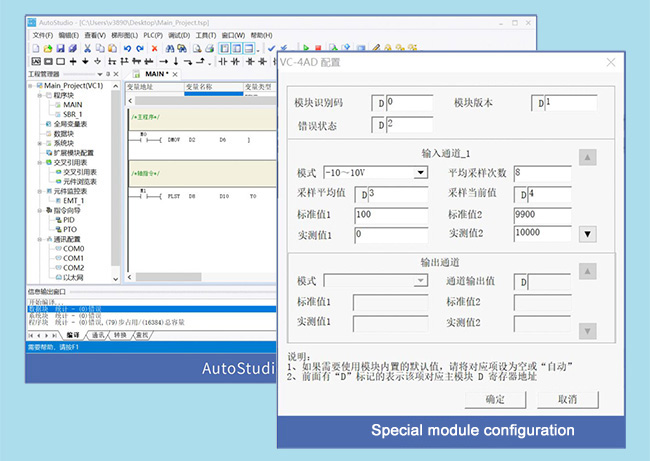

Programming software
Support multiple programming languages and their mutual conversion.
2. Automatically generate and execute subroutines to ensure that the procedures are accurate and accurate.

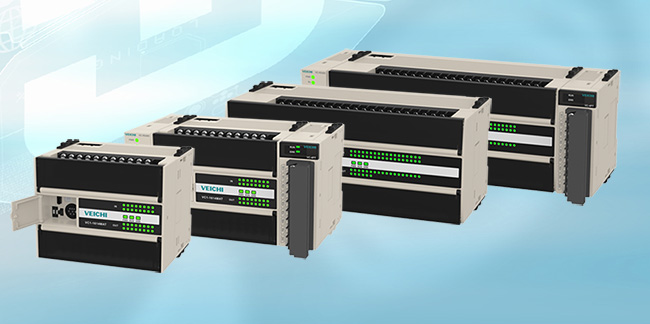

Widely used and cost-effective
The VC1 series PLC is a general-purpose PLC with a small structure, powerful functions, and extremely high-cost performance. It can be widely used in machine manufacturing industries such as machine tools, textiles, packaging, plastic steel, air conditioners, elevators, and printing.
Industrial Applications for VC Series PLC
Applications：Machine tool, packaging, printing, textile and other industries.
Specifications
| basic command execution time | 0.2us |
|---|---|
| Real-time clock | ±45 seconds/month(normal temperature) |
| Program capacity | 16K steps |
|---|---|
| The program is permanently saved after power off | Support |
| Power-down save soft components | PLASH permanent storage.,maximum 2000 word components |
| Maximum IO points | 128 |
|---|---|
| Maximum number of expansion modules | 15 |
| Digital filter function | 8 input points software can set the filter time, later each point adopts hardware filter, the filter constant is 10ms |
| Maxiumum pulse output(transistor) | 3 channels 100kHz |
|---|---|
| Single-phase counting channel | 2 channels with the highest input frequency of 50kHz,6 channels with the highest input frequency of 10kHz |
| Two-phase counting channel | 1 channels with the highest input frequency of 25kHz,2 channels with the highest input frequency of 5kHz |
| Serial communication port | 1 way 232, 1 way 485 |
|---|---|
| Ethernet | None |
| USB communication | USB 2.0 |
Downloads
| File Name | Type | Language | File Type | Update | Download |
|---|---|---|---|---|---|
| Introduction of Internet of Things | Catalog | English | 2018-02-04 | 2.4MB | |
| VC-4AD Analog Input Module User's Manual V1.0 | Manual | English | 2022-01-27 | 892KB | |
| VC1 PLC Manual V1.0 | Manual | English | 2022-01-27 | 839KB | |
| VC-4TC Thermocouple Type Temperature Input Module User Manual V1.0 | Catalog | English | 2022-01-27 | 807KB | |
| VC-4DA Analogue Output Module User Manual V1.0 | Manual | English | 2022-01-27 | 871KB | |
| VC PLC Programming Manual V1.1 | Manual | English | 2022-01-27 | 17.1MB | |
| VC Series Unpowered I/O Expansion Modules User Manual V1.0 | Manual | English | 2022-01-27 | 703KB | |
| VC RS485 Module Manual V1.0 | Manual | English | 2022-01-27 | 584KB | |
| VC-4PT Resistive Temperature Input Module User Manual V1.0 | Manual | English | 2022-01-27 | 923KB | |
| VC USB Driver V1.0 | Software | English | ZIP | 2022-01-27 | 1.99MB |
| VC Programming Software V1.3 | Software | English | ZIP | 2022-12-19 | 53.9MB |
| VC Series PLC Basic Programming Manual V1.0 | Manual | English | 2023-02-23 | 24.6 MB | |
| VC-4DA Quick Reference Manual V1.0 | Manual | English | 2023-02-23 | 859KB | |
| VC-4PT Quick Reference Manual V1.0 | Manual | English | 2023-02-23 | 911KB | |
| VC-4TC Quick Reference Manual V1.0 | Manual | English | 2023-02-23 | 794KB | |
| VC-eNET User Manual V1.0 | Manual | English | 2023-02-23 | 815KB | |
| VC-IO Quick Reference Manual_V1.0 | Manual | English | 2023-02-23 | 691KB | |
| VC-RS485 Module Quick Reference Manual V1.0 | Manual | English | 2023-02-23 | 576KB | |
| VC-24V5POW User Manual V1.0 | Manual | English | 2023-02-23 | 669KB | |
| VC-4AD User Manual V1.0 | Manual | English | 2023-02-23 | 880KB | |
| VC Programming Software V1.12.7.3 | Software | English | zip | 2023-05-29 | 54.2MB |
| PLC Soft_setup_V1.12.8.1 | Software | English | ZIP | 2023-08-08 | 56.2M |
| PLC Soft_Setup_V1.12.8.5 | Software | English | ZIP | 2023-08-10 | 56.3M |
| PLC Soft_Setup_V1.12.8.6 | Software | English | ZIP | 2023-10-07 | 56.5M |
| VC1-0808MAT1 PLC Quick Reference Manual V1.0 | Manual | English | 2024-01-22 | 764KB | |
| VC1-0808MAR1 PLC Quick Reference Manual V1.0 | Manual | English | 2024-01-22 | 766KB | |
| VC1-1616MAR-T PLC Quick Reference Manual V1.0 | Manual | English | 2024-01-22 | 718KB | |
| VC1-2424MAM-4TC PLC Quick Reference Manual V1.0 | Manual | English | 2024-01-22 | 676KB | |
| PLC Series Catalog | Catalog | English | 2024-03-28 | 8.06MB |
