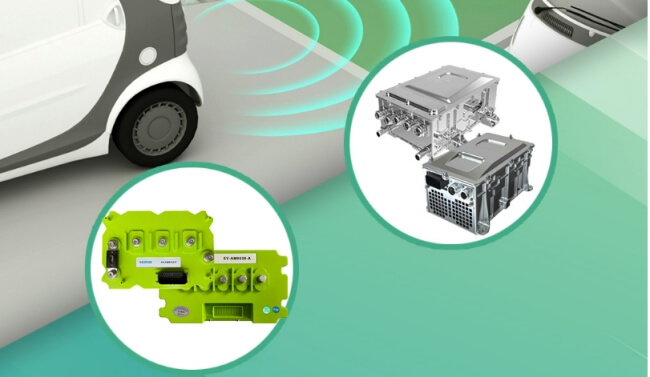

EV Electric Vehicle Motor Controller
- Improve vehicle endurance by energy feedback technology
- Slope anti-rolling function for enhancing safety
- Support AM/PMSM/BLDC motor
- Support IP66 & CAN 2.0 Bus Communication
- Related Products
- Additional Information
EV Series Motor Controller has the features of safety, stability, high efficiency, low noise and easy installation. The series of controllers adopts the international leading vector control technology to ensure that the motor can run smoothly and safely in different modes, even when the encoder is disconnected.
Multiple programming languages are switched, and open programming is easier to manipulate.
1. Support AM/PMSM/BLDC motor
2. Auto-switch control mode to open-loop vector control while encoder signal breaks
3. Improve vehicle endurance through by energy feedback technology
4. Slope anti-rolling function for enhancing safety
5. CAN 2.0 Bus communication technology
6. Customized software
7. Completed protection functions such as over/low voltage, charging protection, high pedal protection, overheating/over current/input reverse protection, etc

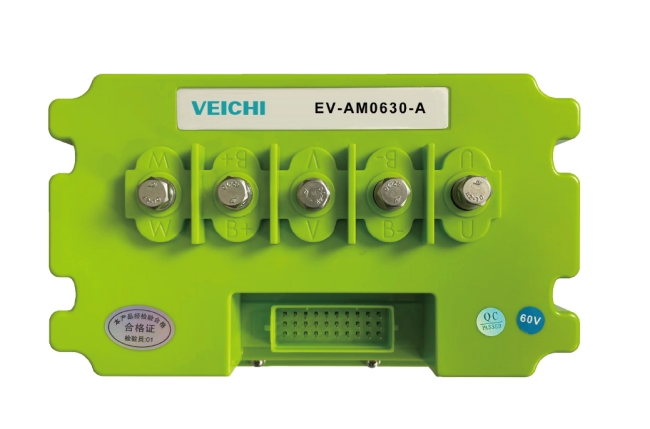

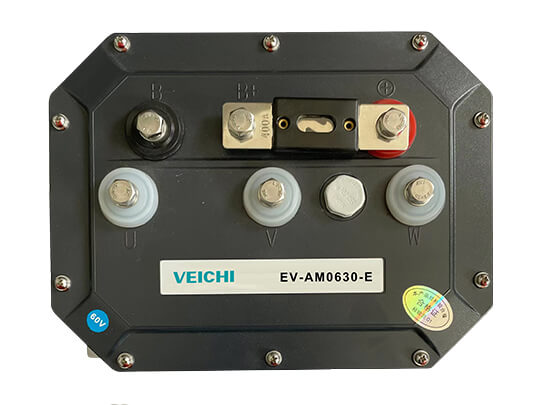

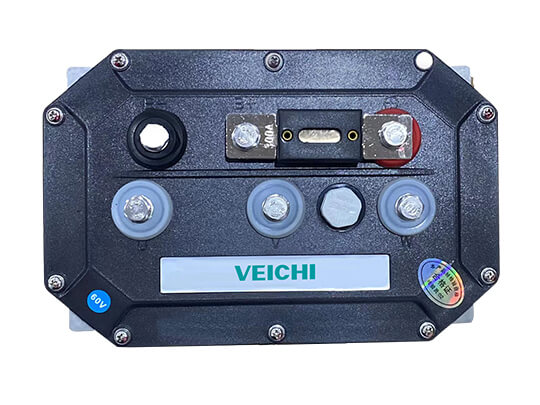

EV-AM06XX-A Electric Vehicle Motor Controller
The EV-AM series EV controller has the characteristics of safety, stability, high efficiency, low noise and easy installation. The series of controllers adopts the international leading vector control technology to ensure that the motor can run smoothly and safely in different operating modes (even when the encoder is disconnected).
This series AC motor controller is suitable for electric cars, electric logistics vehicles, etc.

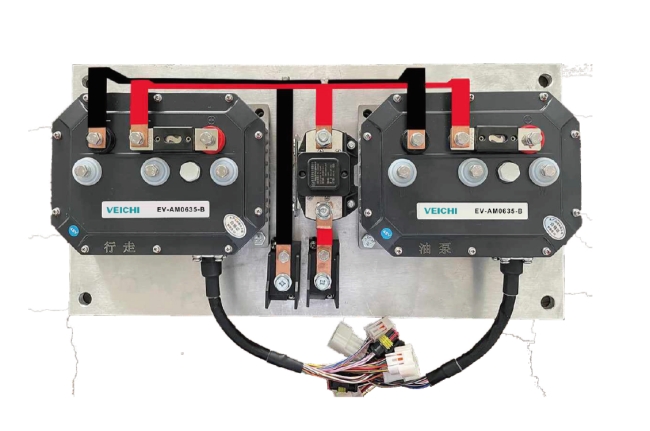

EV-AM06XX-B—Series Forklift Controller
The EV-AM06XX-B forklift controller has the characteristics of safety, stability, high efficiency, low noise and easy installation. The series of controllers adopts the international leading vector control. Compared with foreign products, this product is more cost-effective and has better operating comfort.

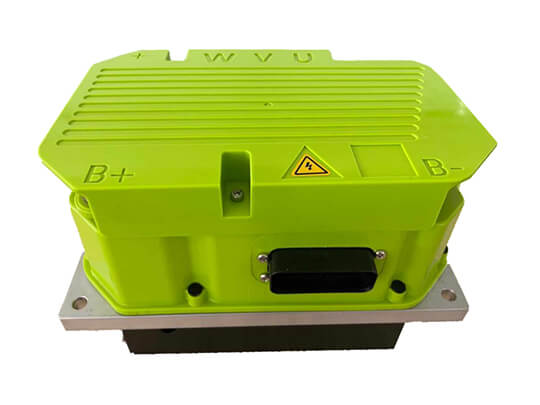

EV-AM0602-H Electric Vehicle Motor Controller
Safety features: Full electrical isolation between high voltage and low voltage, with high voltage open lid interlock protection function, IP67 protection level, CLASS3 EMC level, high reliability.
Application: Auxiliary system for pure electric or hybrid commercial vehicles and logistics vehicles

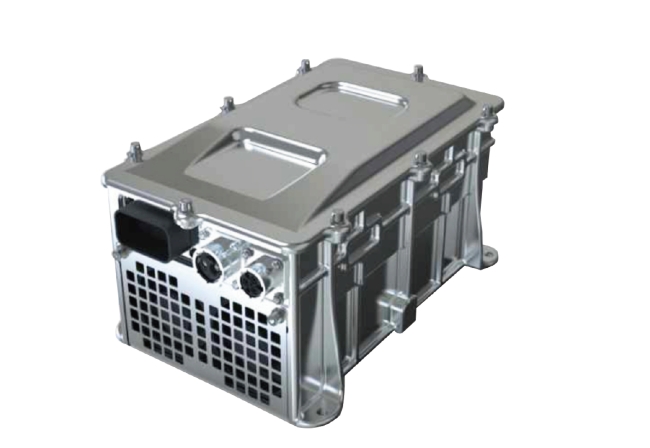

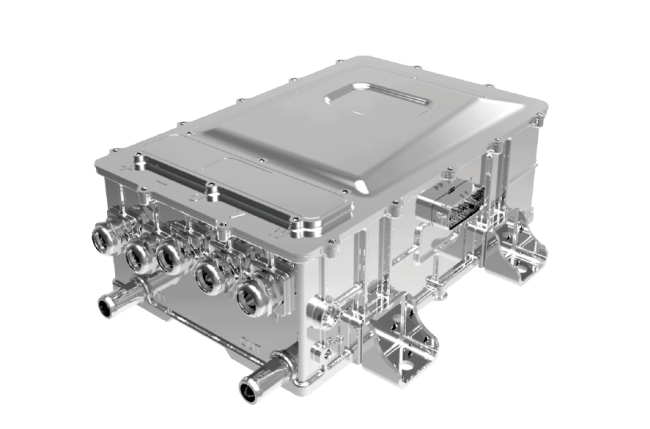

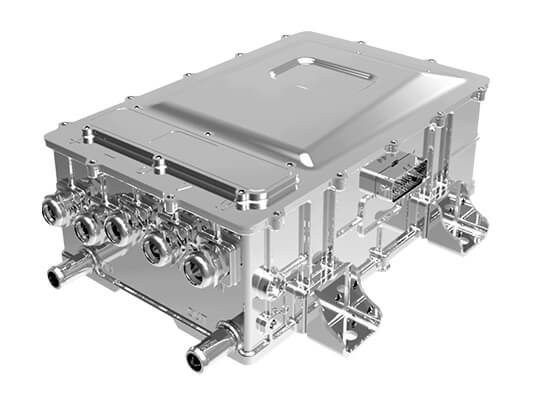

EEV-AM6030-I Water-cooled Series AC Motor Controller for Electric Vehicles
Safety features: Full galvanic isolation between high and low voltage, with high voltage open cover interlock protection, high IP protection class Ip67.
Applications: Main and auxiliary drive systems for purely electric or hybrid commercial vehicles, logistics vehicles, etc.
Energy Feedback Technology
As we all know, in the deceleration process of electric vehicles, the energy of the whole vehicle is mainly used to overcome friction, including wind resistance, rolling resistance, and braking resistance; Among them, braking resistance accounts for the largest proportion. And energy feedback technology is to recover the energy when the motor is in the power generation state during the deceleration, so as to increase the endurance. In general, the endurance of NEDC can be increased by about 15%.

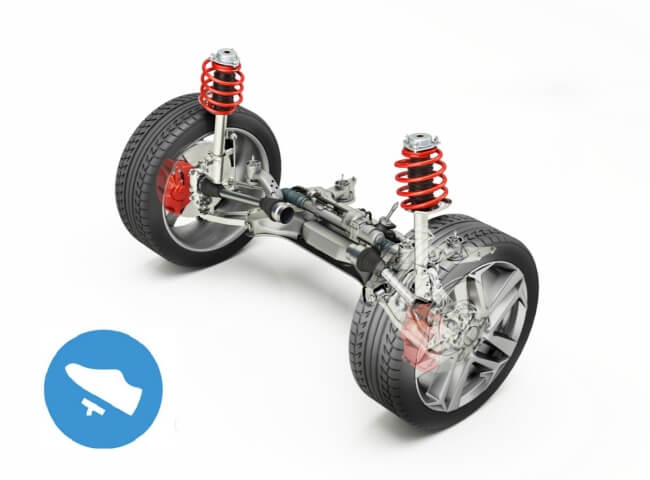

Slope Anti-Roll Back Function
Anti-Roll Back (ARB for short) is a unique anti slip system for electric vehicles, which mainly uses the locked rotor torque of the motor to achieve stable parking on the ramp. VCU will judge whether the ARB function is activated according to the vehicle speed, gear position and other information, and sends the activated flag to the motor. DCU will judge whether to enter zero speed control according to ARB flag to keep the vehicle stable.

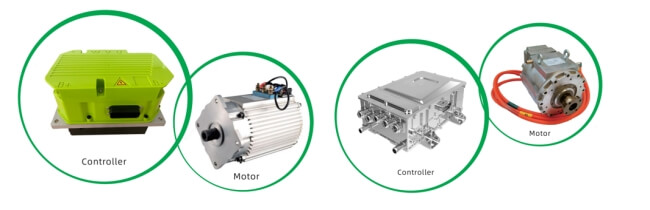

AM/PMSM/BLDC/SRM Motor Driving Technology
EV series controller adopts the latest motor driving technology and run the various kinds of motor such as ac induction motor、permanent magnet synchronous motor、brushless DC motor, synchronous reluctance motor.
Industrial Applications for EV Series Motor Controller
Applications: mini electric vehicle, electric forklift, electric sanitation vehicle, high speed electric motorcycle, aerial working truck and electric flatbed truck, etc.
Mini Electric Car
VEICHI is an excellent system solution provider of domestic micro-vehicle motor control system. The self-developed EV C, D, E series micro-car controllers have the technologies such as energy feedback, slope anti-slip, automatic tuning, etc., and have provided reliable control performance for 1 million mini-cars.
VEICHI has been deeply involved in the field of electric forklifts for many years, and is committed to creating the most reliable system solutions for electric forklifts. VEICHI self-developed control system for electric forklifts (Model B control system), which features safety, high efficiency, low noise and easy installation, etc. also provide complete electric control solutions for many famous forklift factories and created value for our customers.
Electric Sanitation Vehicle
VEICHI A Series product can drive asynchronous motors and permanent magnet synchronous motors, providing a stable, safe and reliable solution for the control system of electric sanitation vehicles.
High Speed Electric Motorcycle
VEICHI A Series product can be used in electric motorcycle drive system, adopts isolated CAN protocol, supports one-line instrumentation and perfect protection function, and provides a reliable control system solution for high-speed electric motorcycle.
VEICHI Control System provides reliable system solutions for many famous domestic manufacturers of special vehicles and engineering vehicles.
|Low Voltage Range/DC||6V-32V|
|High Voltage Range/DC||240V-750V|
|Rated High Voltage/DC||600V|
|Mini Input High Voltage/DC||250V|
|Rated Output Power||6kW-260kW|
|Rated Output Current/AC||13A-240A|
|Motor Control Method||Close/open loop vector control|
|Suitable Motor||AM/PMSM Motor|
|Communication Method||Can 2.0|
|Colling Ways||Air cooling/Water Cooling|
|File Name||Type||Language||File Type||Update||Download|
|EV Series Electric Vehicle Motor Controller Catalog||Catalog||English||2023-02-01||66.4M|
