In July 2022, the VEICHI solar pump system was successfully installed on a farm in Mexico.
The problem of energy and water sources is one of the most important issues many countries are faced with. Around more than 30% agricultural pumps are not available to connect with grid electricity due to poor power facilities. And 50% farms cannot get well irrigated because of poor water conservancy infrastructure. Nowadays the cost of diesel is rapidly increasing，so the cost of maintenance on diesel generator pump system is very high. It is urgent and important to find a sustainable way for agricultural irrigation.

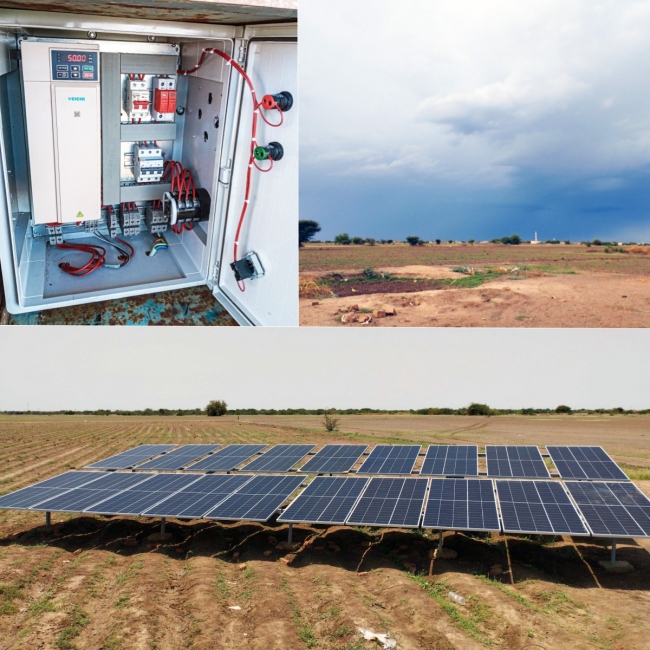

Solar powered water pump technology is a very good solution to agricultural irrigation. The system consists of 12kW solar array，7.5kW pump inverter and 7.5kw pump and provides 15m3/h water for irrigation.
Rated Power: 7.5kW
Rated Voltage: 380VAC 3 Phase
Rated Current: 17A
Rated Frequency: 50Hz
Rated RPM： 2920RPM
Solar Pump Controller:
Drive Brand /Model：VEICHI / SI23-D5-7R5G-A
Rated Power/Current: 7.5kW/17A
Rated Output: 380VAC 3 Phase
Input Voltage Range: 250VDC –780VDC

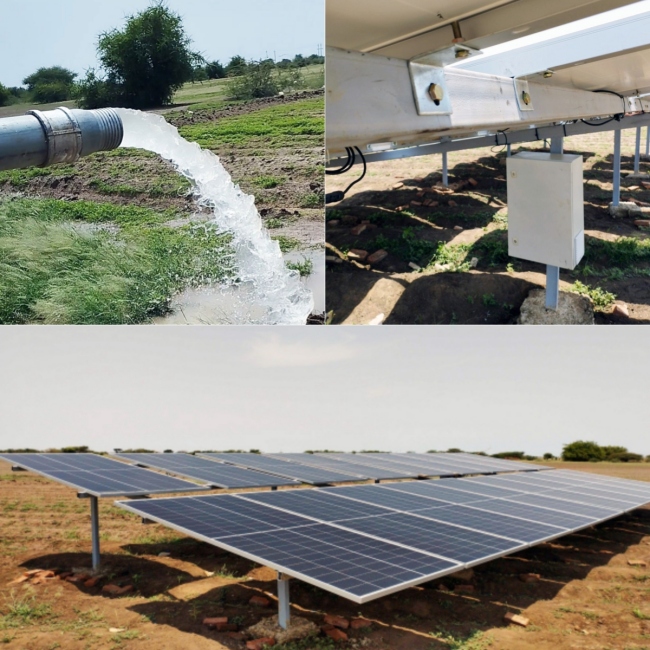

The whole system is built by the lake. It is powered by solar power. It operates automatically and requires no manual monitoring or batteries. It saves electricity and fuel costs compared to homeowners who used to pump water through municipal electricity or diesel generation. In addition, solar power is green, non-polluting and low noise.
