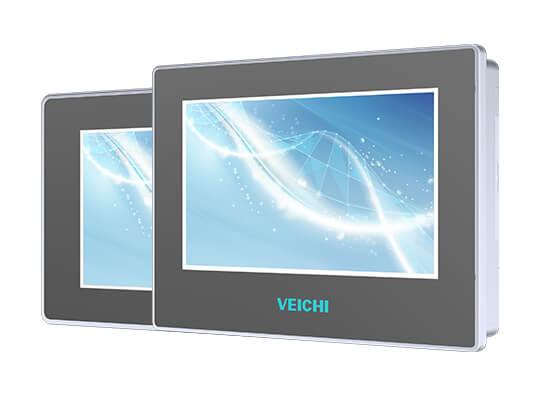

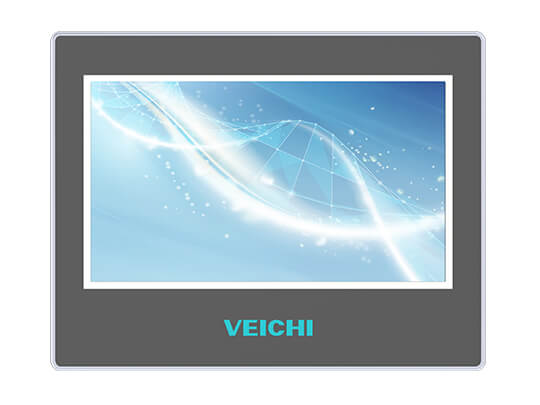

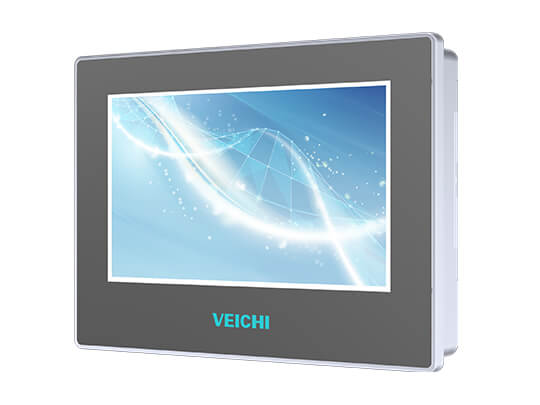

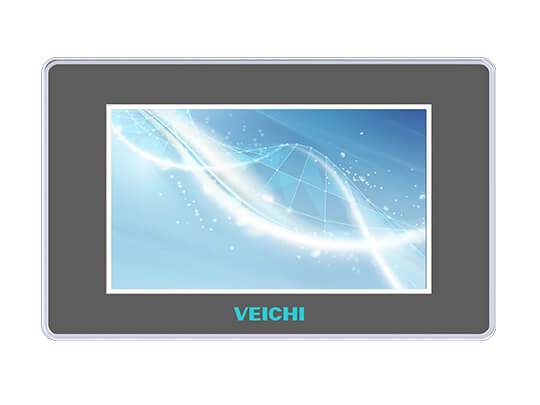

VI20 Series HMI
- Using high-definition, high-brightness display LCD, the maximum viewing angle reaches 170 degrees;
- Possess powerful embedded operating software, namely edge computing software;
- Remote configuration of field device data is possible through Flnk;
- Powerful SAAS platform based on B/S structure;
Catalogue
Contact support
EmailProduct Overview

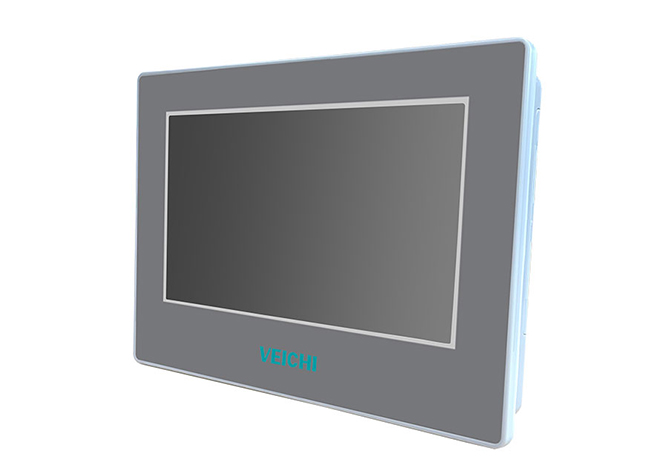

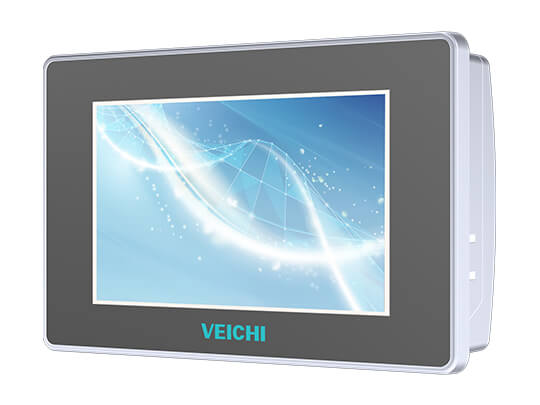

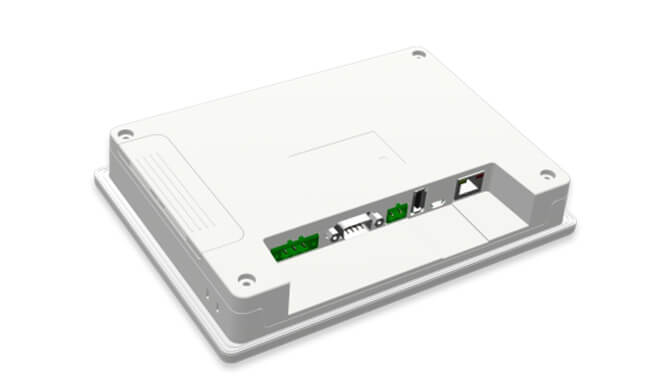

VEICHI industrial HMI VI20 series is a new generation of IoT HMI with the industrial ABS plastic shell and high reliability. The new model comes with a more practical down-cable approach and a better looking. The higher resolution models are also available.
With the FLink IOT module, you can upgrade the IOT HMI immediately and enjoy a complete and convenient industrial IOT cloud platform service.

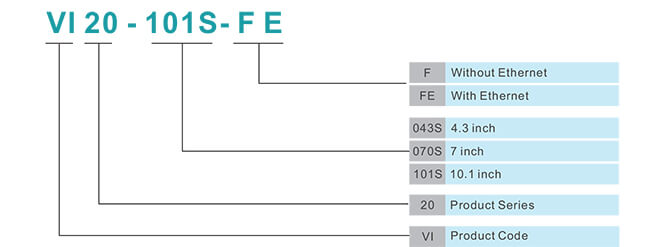

Model Description
Features of the Product
HD, highlight, full viewing angle: Using high-definition, high-brightness display LCD, the maximum viewing angle reaches 170 degrees.
Support edge computing: Possess powerful embedded operating software, namely edge computing software.
1. 300+ protocol local resolution.
2. VPN and routing functions.
3. Data storage function.
4. Support MQTT.
Support Flink IOT expansion module: Remote configuration of field device data is possible through Flnk.
1. PLC remote download.
2. Data configuration.
3. Historical data query.
4. Alarm configuration.
Expansion module card slot
Support module： FLink,FLink-2G(-A),FLink-4G(-A), FLink-4G(-C),FLink-WiFi(-A).
Support cloud platform Flex Cloud: Powerful SAAS platform based on B/S structure.
1. Configuration monitoring.
2. Map monitoring.
3. Data report.
4. Mobile APP.
Installation Dimension Drawing
VI20-043S-F dimensional drawings
VI20-070S-F/VI20-070S-FE dimensional drawings

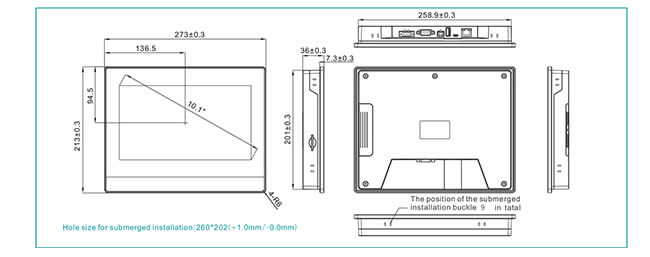

VI20-101S-F/VI20-101S-FE dimensional drawings
Industrial Applications for VI20
Applications：Petroleum and natural gas, chemical pharmaceuticals and other electrical environments that require explosion protection.
Specifications
| Model:VI20-043S-F | Display screen: 4.3” 16:9 TFT LCD screen Resolution: 800×480 Color: 16 bits Brightness: 250 cd/m² Backlight: LED LCD life: 50000 hours Touch screen: 4-wire industrial resistive touch screen CPU: 720MHz ARM Memory: 64MB RAM+128MB Flash RTC: With Ethernet: Without USB port: One Type-C OTG interface Program download method: USB Slave/U Disk (Need to be equipped with adapter cable) Serial communication interface: COM1RS232/RS485/RS422 COM3: RS232 LCD viewing angle (T/B/L/R): 80'/80'/80'/80' |
|---|---|
| Model:VI20-070S-F | Display screen: 7” 16:9 TFT LCD screen Resolution: 1024×600 Color: 24 bits Brightness: 350 cd/m² Backlight: LED LCD life: 50000 hours Touch screen: 4-wire industrial resistive touch screen CPU: 600MHz ARM Cortex-A8 Memory: 128M Flash + 128M DDR3 RTC: Built-in real-time cloc Ethernet: Without USB port: One USB Slave 2.0 port, One USB Host 2.0 port Program download method: USB Slave/U Disk; Serial communication interface: COM1:RS232/RS485/RS422 COM2:RS485 COM3:RS232 LCD viewing angle (T/B/L/R): 85'/85'/85'/85' |
| Model:VI20-070S-FE | Display screen: 7” 16:9 TFT LCD screen Resolution: 1024×600 Color: 24 bits Brightness: 350 cd/m² Backlight: LED LCD life: 50000 hours Touch screen: 4-wire industrial resistive touch screen CPU: 600MHz ARM Cortex-A8 Memory: 128M Flash + 128M DDR3 RTC: Built-in real-time cloc Ethernet: 1 channel 10M/100M adaptive USB port: One USB Slave 2.0 port, One USB Host 2.0 port Program download method: USB Slave/U Disk/Ethernet Serial communication interface: COM1:RS232/RS485/RS422 COM2:RS485 COM3:RS232 LCD viewing angle (T/B/L/R): 85'/85'/85'/85' |
| Model:VI20-101S-F | Display screen: 10.1” 16:9 TFT LCD screen Resolution: 1024×600 Color: 24 bits Brightness: 400 cd/m² Backlight: LED LCD life: 50000 hours Touch screen: 4-wire industrial resistive touch screen CPU: 600MHz ARM Cortex-A8 Memory: 128M Flash + 128M DDR3 RTC: Built-in real-time cloc Ethernet: Without USB port: One USB Slave 2.0 port, One USB Host 2.0 port Program download method: USB Slave/U Disk Serial communication interface: COM1: RS232/RS485/RS422 COM3: RS232 LCD viewing angle (T/B/L/R): 85'/85'/85'/85' |
| Model:VI20-101S-FE | Display screen: 10.1” 16:9 TFT LCD screen Resolution: 1024×600 Color: 24 bits Brightness: 400 cd/m² Backlight: LED LCD life: 50000 hours Touch screen: 4-wire industrial resistive touch screen CPU: 600MHz ARM Cortex-A8 Memory: 128M Flash + 128M DDR3 RTC: Built-in real-time cloc; Ethernet: 1 channel 10M/100M adaptive USB port: One USB Slave 2.0 port, One USB Host 2.0 port Program download method: USB Slave/U Disk/Ethernet Serial communication interface: COM1:RS232/RS485/RS422 COM2:RS485 COM3:RS232 LCD viewing angle (T/B/L/R): 85'/85'/85'/85' |
| Model:VI20-043S-F | Rated power: < 2.5W Rated voltage: DC24V, Workable range DC 9V~28V Power protection: With lightning surge protection Allow power loss: < 5mS CE&RoHS: Comply withEN61000-6-2:2005 EN61000-6-4:2007 standard; Lightning surge±1KV Group pulse±2KV; Static contact 4KV Air discharge 8KV Comply with RoHS |
|---|---|
| Model:VI20-070S-F | Rated power: < 10W Rated voltage: DC24V, Workable range DC 9V~28V Power protection: With lightning surge protection Allow power loss: < 5mS CE&RoHS: Comply with EN61000-6-2:2005EN61000-6-4:2007 standard Comply with RoHS lightning surge±1KVGroup pulse±2KV Static contact 4KV, Air discharge 8KV |
| Model:VI20-070S-FE | Rated power: < 10W Rated voltage: DC24V, Workable range DC 9V~28V Power protection: With lightning surge protection Allow power loss: < 5mS CE&RoHS: Comply with EN61000-6-2:2005EN61000-6-4:2007 standard Comply with RoHS lightning surge±1KVGroup pulse±2KV Static contact 4KV, Air discharge 8KV |
| Model:VI20-101S-F | Rated power: < 10W Rated voltage: DC24V, Workable range DC 9V~28V Power protection: With lightning surge protection Allow power loss: < 5mS CE&RoHS: Comply with EN61000-6-2:2005EN61000-6-4:2007 standard Comply with RoHS lightning surge±1KVGroup pulse±2KV Static contact 4KV, Air discharge 8KV |
| Model:VI20-101S-FE | Rated power: < 10W Rated voltage: DC24V, Workable range DC 9V~28V Power protection: With lightning surge protection Allow power loss: < 5mS CE&RoHS: Comply with EN61000-6-2:2005EN61000-6-4:2007 standard Comply with RoHS lightning surge±1KVGroup pulse±2KV Static contact 4KV, Air discharge 8KV |
| Model:VI20-043S-F/VI20-070S-F/VI20-070S-FE/VI20-101S-F/VI20-101S-FE | Operating temperature Storage temperature: 0~50 ℃ Storage temperature: Minus 20 ℃ to 60 ℃ Anti-UV: It is forbidden to work in a strong ultraviolet environment (such as direct sunlight) Environment humidity: 10~90%RH (No condensation) Shock resistance: 10~25Hz ( X/Y/Z direction 2G/30 minutes ) Cooling method: Natural air cooling |
|---|
| Model:VI20-043S-F | Protection level: The front panel complies with IP65 (installed with flat panel cabinets), and the back shell complies with IP20 Mechanical structure: Engineering plastics Hole size: 132mm×80mm Overall size: 138mm×86mm×32mm Total size: About 560g |
|---|---|
| Model:VI20-070S-F/VI20-070S-FE | Protection level: The front panel complies with IP65 (installed with flat panel cabinets), and the back shell complies with IP20 Mechanical structure: Engineering plastics Hole size: 192mm×138mm Overall size: 204mm×145mm×33.8mm Total size: About 890g |
| Model:VI20-101S-F/VI20-101S-FE | Protection level: The front panel complies with IP65 (installed with flat panel cabinets), and the back shell complies with IP20 Mechanical structure: Engineering plastics Hole size: 260mm×202mm Overall size: 273mm×213mm×36mm |
Downloads
| File Name | Type | Language | File Type | Update | Download |
|---|---|---|---|---|---|
| Introduction of Internet of Things | Catalog | English | 2018-02-04 | 2.4MB | |
| VI20 USB Driver | Software | English | zip | 2023-05-23 | 8.07MB |
| VI20 101S FZ Specifications V1.0 | Manual | English | 2022-03-25 | 535KB | |
| VI20 Studio 2.8.11635.0 for win7, win10 and win11 | Software | English | ZIP | 2023-05-29 | 859MB |
| VI20 Studio-2.8.11909.0 | Software | English | ZIP | 2024-02-20 | 938MB |
| VI20 User Manual V1.0 | Manual | English | 2022-03-25 | 29.1MB | |
| VI20 101S FE Specifications V1.0 | Manual | English | 2022-03-25 | 519KB | |
| VI20 070S FEZ Specifications V1.0 | Manual | English | 2022-03-25 | 532KB | |
| VI20-FBOX Mobile App Download | Software | English | 2023-01-29 | 201KB | |
| VI20 Studio 2.8.11635.0 for XP | Software | English | ZIP | 2023-05-29 | 885MB |
| VI20 Series HMI Catalog | Catalog | English | 2023-10-23 | 25MB | |
| VI20 101S FEZ Specifications V1.0 | Manual | English | 2022-03-25 | 529KB | |
| VI20 043S FZ Specifications V1.0 | Manual | English | 2022-03-25 | 301KB | |
| VI20 070S F Specifications V1.0 | Manual | English | 2022-03-25 | 517KB | |
| VI20 043S F Specifications V1.0 | Manual | English | 2022-03-25 | 275KB | |
| VI20 IOT BWS1.0 FLink Specification book V1.0 | Manual | English | 2022-04-20 | 488KB | |
| VI20 IOT BS4.0 FLink Specification V1.0 | Manual | English | 2022-04-20 | 548KB | |
| VI20-156S-FE Specification V1.0 | Manual | English | 2022-04-27 | 844KB | |
| VI20-Z Neutral Software V1.0 | Software | English | ZIP | 2022-06-10 | 695MB |
| VI20-FBOX-FlexManager-1.0.3131.0 | Software | English | ZIP | 2023-01-29 | 93.3MB |
| VI20 Studio-2.8.11777.0 | Software | English | ZIP | 2023-10-23 | 895MB |
| HMI FGateManager-1.0.3289.0 | Software | English | ZIP | 2023-10-23 | 114MB |
