V7U Series Servo Motor
- Lower temperature rise
- Higher precision
- Better protection
- Gained CE, EAC, UL Certifications
- Related Products
- Additional Information

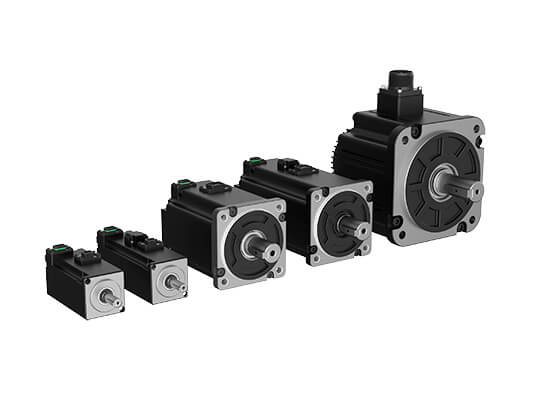

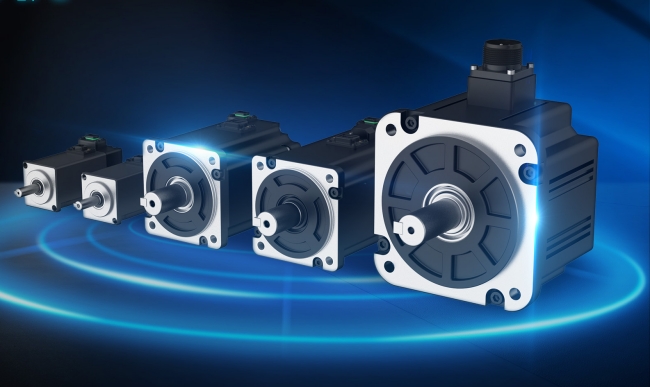

V7U Series Servo Motor Overview
VEICHI V7U Series Servo Motor is used together with the newly upgraded SD780 servo drive. Excellent performance design enables our motors to be widely used in various industrial fields, such as machine tools, packaging industry, industrial robots, and so on.
2. Better out.
3. Lower temperature rise.
4. Higher precision.
5. Shorter length.
6. Better protection.
7. Worldwide admit: Gained CE, EAC, UL Certifications
International Standard UL Certification
International standard UL certification, Applicable to all countries with UL certification requirements worldwide.
Full range of motor body IP67 protection grade, more durable
The protection level of the whole series of V7U motors has reached the level of IP67. The high protection level can make the motor suitable for more environments, so that the motor has a longer operating life and the protection level has reached the highest standard in the industry.
Dust and gas cannot enter, and all gaps have rubber parts to ensure reliable air tightness.
A forceful spray of water from any direction on the enclosure will have no deleterious effect.
Under normal temperature and pressure, there will be no harmful effects when the shell is temporarily immersed in water at a depth of 1M.

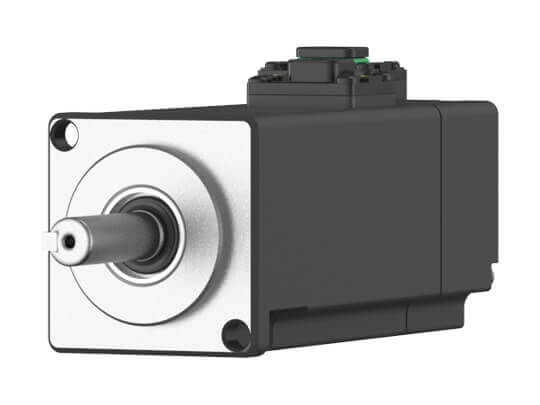

No lead wires, more beautiful
The V7U motor adopts aerial plug-in wiring, no lead wires, integrated end cover, and fewer holes for screws on the front cover. On the whole, the motor is simpler and more beautiful.
The temperature rise of the motor is lower, which is more friendly to the equipment
The temperature rise of the V7U motor has been greatly improved. Compared with the VM7 motor, the overall temperature rise has dropped by 5-10 °C. (750W motor)

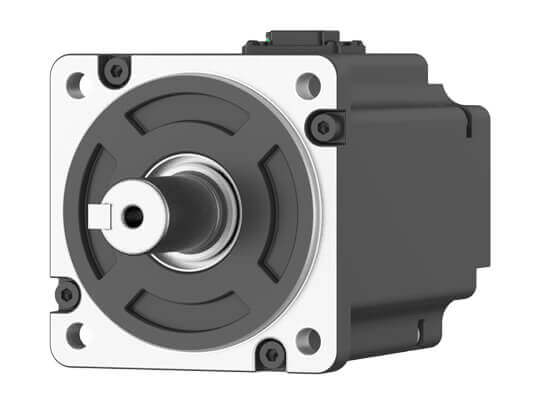

Less shaft runout and higher accuracy
The shaft runout of the V7U motor is smaller, and the precision is higher, which can challenge higher-end applications. From the original 4-wire shaft jump accuracy to 2-wire shaft jump accuracy, it belongs to the cutting-edge level in the industry.
Industrial Applications for V7U Series Servo Motor
Applications：Electronic manufacturing equipment, numerical control equipment, packaging machinery, printing machinery, textile machinery, plastic machinery and glass equipment, testing equipment, etc.
|Power||Min:0.1 kw,Max:7.5 kw|
|Torque||Min:0.32 Nm,Max:47.75 Nm|
|Rotational speed||Min:1500 rpm,Max:3000 rpm|
|Configuration||with brake,permanent magnet,hollow-shaft,frameless,small,pancake type,compact|
|Number of poles||2-pole,3-pole,4-pole|
|Other characteristics||CNC,performance,closed-loop.Canopen,EtherCAT,maintenance-free,programmable,integrated-drive,motion control|
|File Name||Type||Language||File Type||Update||Download|
|UL of V7U Servo Drive||Certificate||English||2022-12-01||494.97 KB|
|ServoSelector V1.0.6 (Simplifed for SD780)-EN||Software||English||ZIP||2022-12-02||662KB|
|Solution for Machine Tool Industry||Catalog||English||2019-04-17||10MB|
|SD700&710&780 Series Servo Soft V2.4-EN||Software||English||ZIP||2023-03-15||51.8MB|
|CE (LVD) of V7E&V7U&VM7 Servo Motor||Certificate||English||2022-12-19||296KB|
