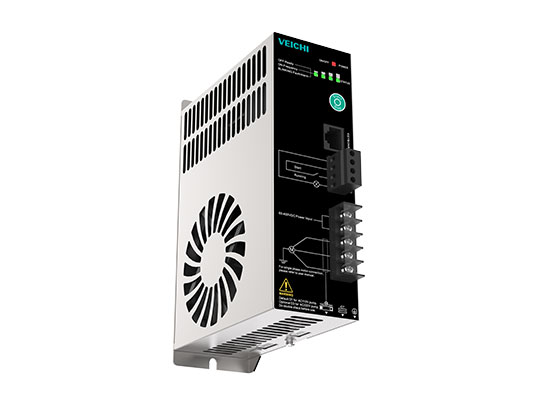

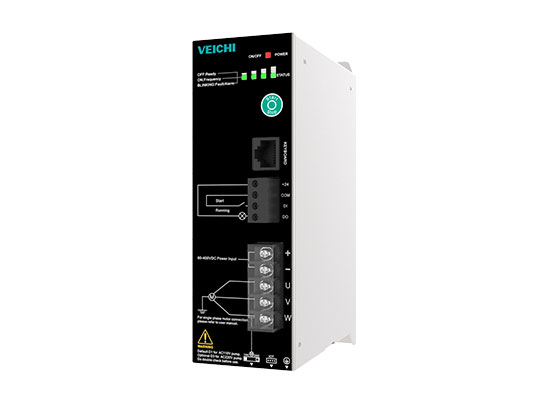

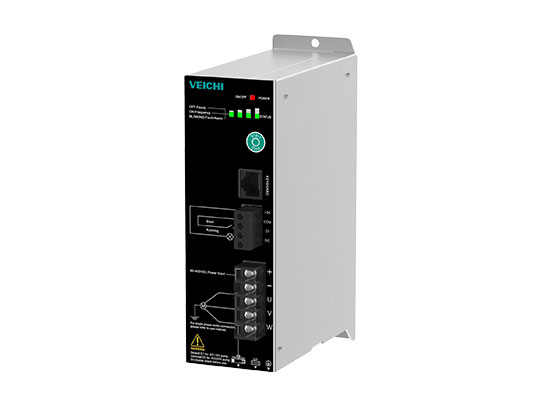

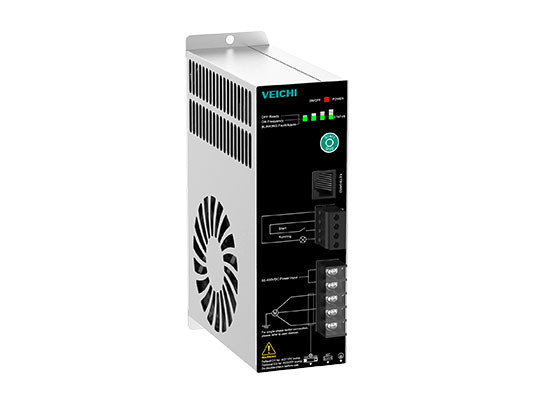

SI22 Series Solar Pumping Inverter
  • SI22 Series Solar Pumping Inverter

SI22 Series Solar Pumping Inverter

Small Body,Great Performance;
It works as the little assistant who can help farmers become rich by solar pump irrigation;
Small Body:Palm-sized,and reducing installation space & delivery cost;
Modern Stylish:One technology & one art,Easy to understand;

SI22 Solar Pump Inverter Overview

The SI22 solar pump inverter is cost-effective and economical, and the farmer's uncle is a little helper for photovoltaic water and irrigation to get rich. Small and exquisite, palm-sized, greatly saving installation space and transportation costs. Simple and stylish, integrating technology and art.

  1. High-cost performance, pump more water with less cost.
  2. Perfect drive synchronous, asynchronous, BLDC, single-phase.
  3. Small and exquisite, palm-sized, saving installation space, and transportation costs.
  4. Simple and stylish, integrating technology and art.
  5. Intelligent IOT, which integrates online, offline, and WIFI functions.
  6. MPPT, real-time output maximum power.
  7. Simple operation, easy wiring, no trouble.
  8. Multiple protection functions escort the water pump.

The appearance is small, but the strength should not be underestimated

  1. The palm-size saves installation space and transportation costs.
  2. Thinner and lighter than other models in the past, but still powerful.
  3. Concentrate all the functions you need in an exquisite and portable design.

Simple and stylish, integrating technology and art

  1. One-key start and stop, convenient and quick.
  2. It integrates operation guidance and panel, easy to understand.
  3. The shell and the fan are organically integrated, and the ventilation is smoother.

Powerful software function to escort the water pump

  1. MPPT>99%: Adjust the output frequency according to the sunlight intensity, and get the maximum power point in real-time.
  2. Special protection functions for photovoltaic pumps: sleep, low frequency, dry, overcurrent, minimum power, etc. to ensure safe and reliable operation of the pump.
  3. Wide voltage range, support 60V-400V, longer pumping time.

Smart IOT, smart irrigation

  1. It integrates online, offline, and WIFI functions and WIFI self-organizing networks can be used in areas without network.
  2. It supports a wide range of frequency bands and can be used in any area of the world.
  3. A powerful Internet management platform can control water and fertilizer requirements anytime and anywhere.

Drive forever, a variety of pumps are perfectly driven

  1. Permanent magnet synchronous water pump: open-loop vector control, can drive high-efficiency permanent magnet synchronous water pump.
  2. Three-phase AC asynchronous motor water pump: default parameters, no need to set, one-key drive.
  3. Brushless DC pump: Compatible with 10A and below DC brushless pump drive.

VEICHI SI22 Solar Pump Inverter Video

Industrial Applications for SI22 Series Solar Pump Inverter

Applications:Farmland irrigation, residential water, landscape fountains, swimming pool water supply, desert management



Solar pump inverter power(KW)

Pump

Max solar power input

(KW)

Max DC input voltage V

Recommend Voc voltage (V)

Rated output current(A)

Output frequency(Hz)

Rated power (KW)

Rated voltage(V)

SI22-D1 series, DC60-400VDC input, 3 phase 110-230VAC output, suitable for 110VAC pump

0.75

0.75

110

1.0

400

175~380

7A

0-320

1.5

1.5

110

1.95

400

175~380

10A

0-320

SI22-D3 series, DC60V-400V input, 3 phase 220-240VAC output, suitable for 220VAC pump

0.75

0.75

220

1.0

400

360~400

4A

0-320

1.5

1.5

220

1.95

400

360~400

7A

0-320

2.2

2.2

220

2.86

400

360~400

10A

0-320



Items

Specification

Power range 750 W-2,200 W

Power Input

Voltage

 60-400VDC

Inverter Efficiency

》96%

Output

MPPT Efficiency

More than 99%

Output Frequency Range

0-320Hz(320Hz or more can be customized)

Overload Capacity

150% of rated current for 1 minute, 180% for 10 seconds,200% for 0. second

Basic Function

Solar Pump Protection

1. Low speed protection
2. Dormancy function
3. Undervoltage/Overvoltage protection
4. Water fulfilled protection
5. Input/output phase lose protection
6. Phase-Phase/ Phase to ground short circuit protection

IOT Module

Support plug and play IOT module

DI/DO

1 loop digital input , 1 loop collector circuit output

Auxiliary  Power

24VDC,maximum output 100mA

Water Pump Types

Three-phase AC AM pump(110VAC/220VAC), three-phase AC PMSM pump,BLDC pump(10A  or below),single-phase pump(10A or below)

Environment

Installation Site

Indoor, altitude less than 1000m, free corrosive gases and direct sunlight

Temperature、Humidity

-10—60℃

Installation Mode

Hanging

Ingress Protection

IP20

Cooling

Forced air cooling

International Certificate

CE
