The main driver of Morocco's economic growth in recent years has been the agricultural sector. Local government authorities have also placed a high priority on investing in agricultural infrastructure development.
The problem of energy and water sources is one of the most important issues many countries are faced with. Around more than 30% agricultural pumps are not available to connect with grid electricity due to poor power facilities. And 50% farms cannot get well irrigated because of poor water conservancy infrastructure. Nowadays the cost of diesel is rapidly increasing，so the cost of maintenance on diesel generator pump system is very high. It is urgent and important to find a sustainable way for agricultural irrigation.

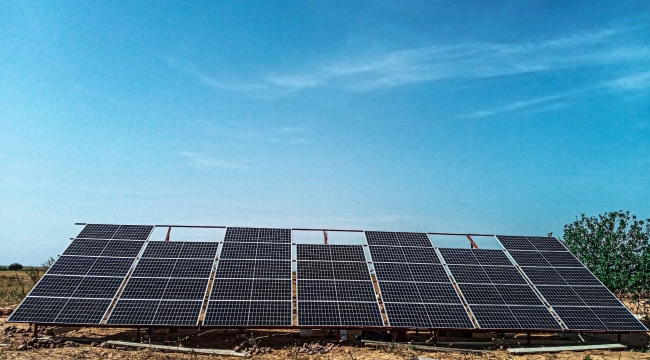

Solar powered water pump technology is a very good solution to agricultural irrigation. The system consists of 20kW solar array，11kW pump inverter and 11kw pump and provides 25m3/h water for irrigation.
Rated Power: 11kW
Rated Voltage: 380VAC 3 Phase
Rated Current: 25A
Rated Frequency: 50Hz
Rated RPM： 2920RPM

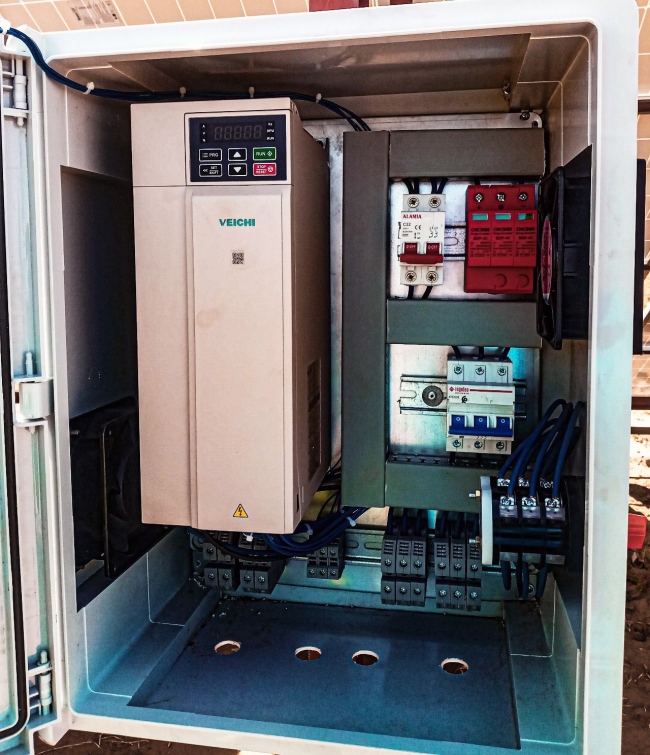

Solar Pump Controller:
Drive Brand /Model：VEICHI / SI23-D5-011G-A
Rated Power/Current: 30kW/60A
Rated Output: 380VAC 3 Phase
Input Voltage Range: 250VDC –780VDC
The scope of the project included the supply and installation of 1 VEICHI SI23 series solar water pumping system. The water pump system does not require batteries. The solar generator supplies the pumps during the day and can be switched to grid power at night if necessary to meet the 24-hour operation of the pumps.
